The economist Frederic Bastiat wrote about the seen – and the unseen – effects triggered by economic decisions.

Regulatory decisions, too.

One such effect is the continuously variable transmission (CVT). It could also be called the compliance transmission (CT) because it was developed chiefly to help vehicle manufacturers comply with federal regulations requiring them to meet certain arbitrarily decreed and continuously escalating “fleet average” gas mileage numbers. These Corporate Average Fuel Economy (CAFE) mandatory MPG minimums have been increasing steadily since the mid-1970s from just over 20 MPG to about 50 MPG today.

It is fair to say that were it not for these CAFE MPG mandatory minimums – which are imposed by the federal regulatory apparat rather than by any elected representatives of the people in our “democracy” – the CVT automatic would probably never have been developed in the first place. It would certainly not be as commonplace as it has become.

But what are the advantages of the CVT automatic – in terms of compliance? And what are the disadvantages  – if you end up owning a car that has one?

In other words, the seen – and the unseen?

Before these questions can be answered it is necessary to explain what a CVT automatic is and how it differs from other automatics.

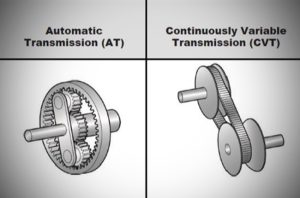

A conventional automatic shifts up and down through a predetermined number of gears. It has clutches and a planetary gearset. A six speed automatic has six forward gears. Each gear is a kind of step up – or back down – that ends up applying more (or less) mechanical leverage to the vehicle’s wheels, in order to get it moving from a stop and then keep it moving at progressively higher road speeds while reducing the load on the engine.

The lower gears provide mechanical leverage to get the vehicle moving quickly when it is not moving fast; once it is moving fast, less leverage is needed to keep it moving, so the transmission shifts up and – eventually – reaches an overdrive gear that reduces engine speed to a fast idle at highway speeds.

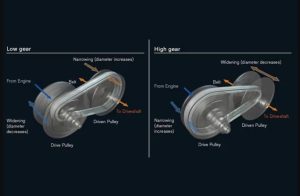

A CVT automatic has no gears and does not shift up or down. It continuously varies the relationship between the speed of the engine in relation to the speed of the vehicle. It typically does this via a belt and pulley system that expands and contracts to achieve an effect similar to up (and down) shifting but with the advantage of more precision in that a CVT is not “locked into” fixed ratios that are necessarily not exactly optimum for maximum efficiency. The CVT is thus able to help a vehicle manufacturer trying to squeeze another 2-3 miles-per-gallon out of a car – in order to “achieve compliance” with the CAFE MPG mandatory minimums.

And that’s why CVTs have become so commonplace, especially in vehicles that the manufacturers sell a lot of, such as crossovers. Because remember those “fleet averages.” The more in the fleet with CVTs that get two or three MPGs more than they would have with a conventional (geared) automatic, the better the averages – and the closer to compliance the manufacturer gets.

And that is why it is fair to style the CVT transmission a compliance transmission.

But the slight MPG improvement is a debatable gain to the purchaser of the vehicle. Put another way, it is not likely a person who is interested in buying a given vehicle is going to decide to buy it because it averages 35 rather than 32 MPG.

Or decide not to buy it because it averages 32 rather than 35 MPG.

There is one other CVT advantage: The shiftless action during acceleration. Even pedal-to-the-floor acceleration. You can do that in a CVT-equipped vehicle while holding a cup of coffee in your hand and not spill hot coffee in your lap when the transmission shifts from first to second (or second to third – and so on) because the CVT doesn’t shift. It surges forward. More accurately, the engine surges forward as the vehicle surges forward. The revs – engine speed – increase along with road speed. But there is no “shift shock” as this progresses because – again – the CVT doesn’t shift up to the next highest gear (or down to the next lowest when you floor it to pass another car).

But you do hear the engine rev – because the CVT will generally keep the engine revving at high RPM during pedal-to-the-floor acceleration. The effect is most noticeable in cars with low-powered engines that have to rev to make adequate power. The CVT tends to magnify the feeling that you’re driving an underpowered car and working the engine hard – because you are.

It is one of the reasons many people dislike CVTs.

But that is not the major disadvantage of CVTs. That would be their relative fragility vs. a conventional (geared) automatic that shifts through gears, up and down. The CVT, on the other hand, alters the leverage situation via a belt/chain that expands and contracts, thus continuously varying the range you’re in at any given moment. But the weak link –  literally – is that the belt,/chain over time, is weakened by that expanding and contracting. Eventually – inevitably – the belt/chain fails and when that happens, the CVT must be replaced because it’s not worth the effort and expense to fix it.

The cost currently averages from $3,000 on the low end to $8,000 (or more) on the high end.

Of course, it isn’t inexpensive to replace a conventional (geared) automatic, either – but the take-home point is you probably won’t ever have to. Barring the occasional poor design or manufacturing defect, it’s common for geared automatics to hold up for the life of the vehicle, 15-20 years or even longer.

CVTs tend to fail sooner, especially some of them (that’s you, Jatco).

It’s a situation analogous to another thing unseen – the extreme and rapid depreciation of battery powered vehicles due to the inevitable decline of the very expensive battery pack’s capacity to hold as much charge as it could when it was new.

And the trend toward motorcycle-sized engines in passenger cars that weigh  six or seven times what a motorcycle weighs. Instead of a 3 or so liter V6, a 1.3 liter three, heavily turbocharged to enable it to move the same weight.

Also, the near-disappearance of the manual transmission – which cannot be programmed to eke out the highest-possible mileage numbers on government fuel-efficiency tests.

All four are fine examples of the consequences of actions not immediately apparent at the time a regulatory decision was imposed that manifest at some point after the fact. It is kind of like what happens after you eat too much of the wrong food.

It just takes a while to work its way through.

. . .
