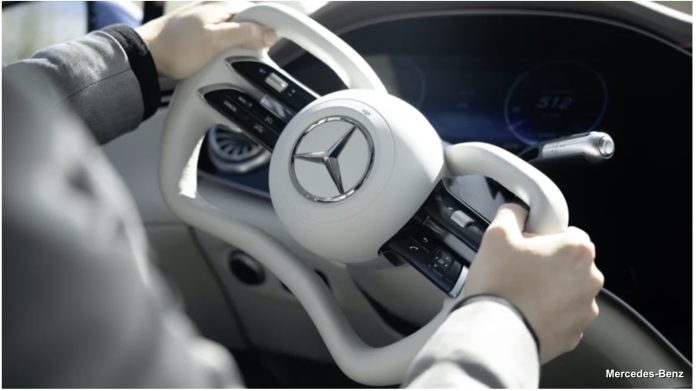

Mercedes announced the other day that it will debut a yoke – in lieu of a steering wheel – along with the the illusion that the driver is in control of the steering – in the next iteration of its EQS device.
The illusion part is the real part of what is called “steer by wire,” which the EQS device and other forthcoming Mercedes models will be equipped with, along with the yoke that doesn’t control it. The yoke is there for the same reason driving simulators have “controls” in that it is all part of the simulation. You move the controls and the simulation responds, but it is the computer that’s really in control.
More than that, really. It is whoever – or whatever – has control over the computer, as via “updates” that you have no control over, that controls the car.
They will market this control differently, of course.
The yoke will free up room! It will give you a better view of the instrument cluster! It will be easier to “steer” the vehicle (steering is so hard) because the system can translate very slight movements of the yoke into proportionately greater “steering” angles . . . And all of that is true. It’s the parts they’re not telling you about that are more . . . interesting.
First, that in a vehicle equipped with steer-by-wire, there is no physical connection between the driver – if you still want to call him that – and the wheels that steer the car. This is night-and-day different than the physical/mechanical connection between driver and steering (via the steering wheel) that has existed since the days of the Model T and even before that – when cars had a kind of tiller. Both till and steering wheel connected the driver’s hands to the wheels that steered the car via a direct mechanical link that was (later on) supplemented via hydraulic assistance; i.e., power steering, to make it easier to steer.
But the car only went in the direction the driver steered it – unless it was skidding and even then, he was still able to exert directional control directly via the steering wheel.
Steer-by-wire severs – eliminates – that connection. The yoke – sensors – sends data about the change in arc (i.e., how much the driver – if you want to use that word – moves the yoke around an imaginary circle) and that data is sent to the computer, which controls the electric motor(s) and actuators that cause the wheels to go left or right, the degree of that being decided by the computer according to the data it receives and interprets.
A sort-of hybrid iteration of this is already in use in most new vehicles.
There is still a mechanical steering column that physically connects the steering wheel (and so, the driver) to the front wheels – but the power assist is provided by electric motors rather than a hydraulic pump and these motors are used to “correct” the driver’s steering – by applying force to countersteer the car in the opposite direction. This is marketed as Lane Keep Assist “technology.” As if the driver – whom this “technology” is working to take control away from – were in fact being assisted.
Arguably, he is being conditioned to get used to not being fully in control of steering the vehicle.
Steer-by-wire being the inevitable evolution if this idea.
But what’s so bad about severing the connection – physically – between the steering wheel and the wheels that steer the vehicle?
Several things.
The first being that steer-by-wire is another expensive cheap-out. Meaning, it is another way for vehicle manufacturers to reduce their costs at our expense. It costs them less to make vehicles that are – as the saying goes – “plug and play.” Meaning, they can eliminate the parts and labor involved in putting a steering column and associated peripherals in a vehicle as it is being assembled. Instead, just plug a yoke into its fitting and it will transmit data to the computer, which will send signals to the electric motors that control the steering angle. The savings translate into increased profits for the manufacturer – at our expense.
Not just up-front, either.
Mechanical steering and hydraulic assistance are more repairable while drive-by-wire is more replaceable. The distinction is important. When electronic things fail, you generally can’t fix the failed component. It just stops working. .
This brings up another – related – important point. Mechanical steering is safer because it’s more failure proof. More finely, it is unlikely you will ever lose control over steering because the steering is mechanically connected to the steering wheel. You may lose steering assist – if the hydraulic system (i.e., the power steering pump/hoses) fail. But you will still be able to control the steering. It is possible the mechanical connection could break – i.e., that steering column could detach from the steering linkage – but this is hugely improbable.
What happens when steer by wire fritzes? What happens when it glitches?
What happens if someone or something else takes over the steering? A system controlled by a computer that is connected (capable of receiving instructions over the air) can be controlled externally via the same technology that enables a car’s engine to be shut off remotely and that can also be used to control a car’s throttle and so the car’s speed can also be used to control its steering when the latter is just another electronically controlled thing.
But – the good news – it’ll be easier to steer soon.
. . .
