It’s a commonplace that new vehicles are expensive but that doesn’t cover what they cost. The distinction is important.

Nor does it account for the why.

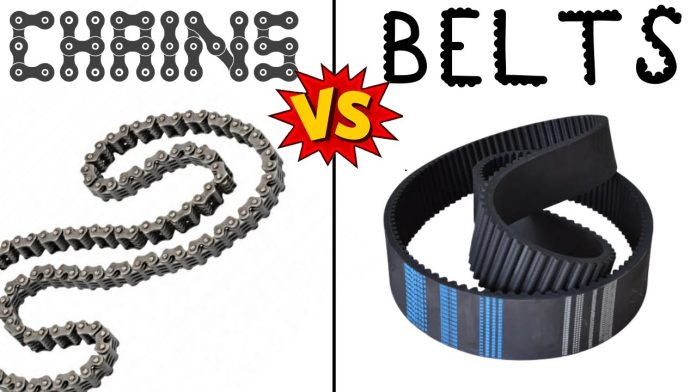

Timing belts – vs. timing chains – are an example of something that has added a hidden cost to the expense of owning a new vehicle that arguably is the result of government regulations and the pressure vehicle manufacturers are under to comply with them.

An engine’s reciprocating assembly – the up and down action of the pistons and intake/exhaust valves, specifically – have to be timed to operate in sync else the engine won’t run. The timing chain – or belt – is the thing that times the engine’s reciprocating assembly so that everything works in sync. A timing chain is what it sounds like – and so is a belt. They both do basically the same thing, but are different in that a timing chain is just that and so is a belt. The distinction is important.

Here’s why:

A timing chain is made of metal links and – over time – it may stretch but it is not likely to break. Timing chains generally last the life of the engine. Timing belts are likely to break if not replaced according to the manufacturer’s  recommended mileage intervals, usually around 75,000 miles or so.

The distinction is important. Here’s why:

If you have a car that has an engine with a timing belt and you don’t have it replaced at or around the recommended mileage interval, it is a near-certainty that at some point not too far down the road, the belt will snap and – at the very least – you will immediately be stuck by the side of whatever road (or highway) you happened to be driving on when it snapped because the engine will immediately stop running. It might be worse than just that, if your car has an interference engine, which simply means that the reciprocating assembly will smash into itself when no longer synced by the timing belt. The result being a ruined engine.

Either way, there’s a cost involved – and it isn’t inexpensive.

A timing belt replacement costs – on the low end – about $1,500 and it can cost a great deal more, depending on the make and model of the vehicle. It costs a lot because there is a lot of work involved. The engine must be at least partially disassembled and then put back together again. It requires the services of a skilled mechanic – and their services are not inexpensive. You could, of course, elect to forgo this expense by continuing to drive the vehicle and – fingers crossed – and hope the timing belt holds up. It probably will – for awhile. But then – one day – it won’t. And then you will have to deal with the sudden, unplanned cost of having the vehicle towed to a shop and paying for an expensive repair you didn’t expect to have to pay for today.

Many people do not have the $1,500-plus to pay for such an expense. Not in cash – or in the bank. So they have to finance the cost using a credit card that probably has a monthly interest rate in the 18 percent range – or higher than that (as astounding as it may seem, there are cards out there that charge as much as 40 percent interest monthly).

There’s a cost to that.

If they can’t afford to pay it, they have an inoperable vehicle – and that costs, too. Some people junk a car that had a timing belt failure and choose instead to finance a new car – because the monthly payment seems lower to them than the one big payment (or paying exorbitant interest on a credit card balance they can’t afford to pay off).

So why have timing belts largely replaced timing chains?

Well, because European/Japanese-style overhead cam engines have replaced American-style overhead valve engines. The distinction is – again – important.

Most overhead cam (OHC) engines have timing belts and most overhead valve (OHV) engines have timing chains. To put a finer point on it, most of the American cars made up until the mid-late 1980s had OHV V6 and V8 engines – with timing chains – while most import-make cars have OHC fours and V6s.

What happened over a roughly 30 year period – beginning in the mid-late 1970s – was that the typical car became an import-like car, even if its make was American. Take a look at an old episode of CHiPS or any other TV show that shows what was on the road in say 1977 and compare that with what you see on the road today. There used to be an obvious difference between American cars and imported cars. There is very little distinction today. Excepting big trucks and SUVs, American roads look a lot like European and Japanese roads because the vehicles all look pretty much the same.

And why do they look pretty much the same?

Because government regs homogenized them. Small, front-drive crossovers equipped with small, OHC engines comply with federal fuel-efficiency and “emissions” regulations (the latter in air fingers quote marks because carbon dioxide isn’t a pollutant) better than big cars with big (and OHV) V6 and V8 engines.

That’s why exceptional OHV engines – that do not have timing belts – such as GM’s 3.8 liter V6 as a for instance –  are no longer available in anything new. You can still get an OHV V8 with a timing chain in GM’s big trucks and SUVs. But only if you can afford the expense – and there’s another way all of this costs us.

Once upon a time, average Americans could afford to buy a car or a truck with a V8 engine that never needed to have a timing belt replaced because it didn’t have one.

But that time is long time gone.

. . .
